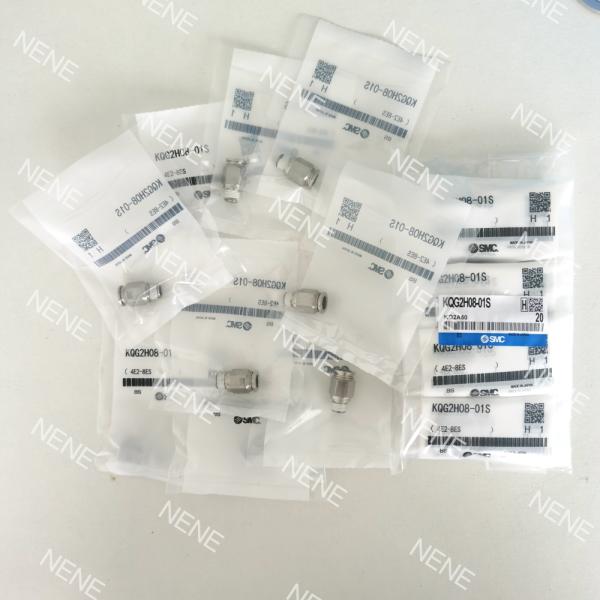

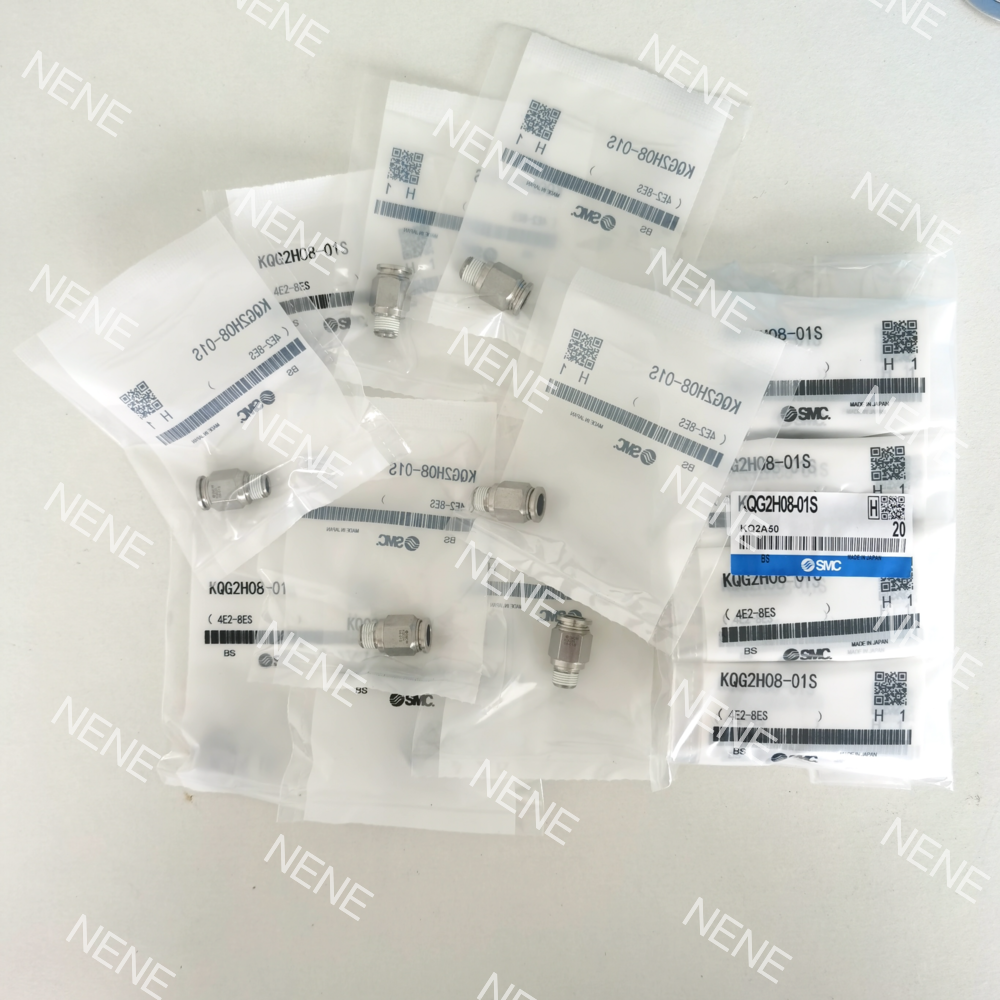

Product Description:
The SMC KQG2H Series offers stainless steel 316 (SUS316) one-touch fittings specially crafted for applications that demand superior corrosion resistance, chemical resistance, and temperature durability. These fittings are engineered with a push-to-connect design, featuring metal components fabricated from SUS316 stainless steel and seal elements composed of a special FKM material. They are free from grease and are compatible for use with steam.
Compared to the preceding KQG series, this line of fittings is a remarkable 30% smaller in volume and 62% lighter in weight. Furthermore, they come in various options to cater to different sizing requirements including metric and inch measurements.
Features:
Premium Material: Metal parts made of SUS316 stainless steel, providing better corrosion and pitting resistance than 304 stainless steel, especially in chloride environments.
Compact & Lightweight: 30% smaller volume and 62% weight reduction compared to the traditional KQG series, ideal for space-constrained applications.
High Temperature Resistance: Fluid temperature range from -5°C to +150°C.
Wide Compatibility: Applicable to various tubing materials including FEP, PFA, nylon, soft nylon, polyurethane, polyolefin, etc.
Multi-Fluid Application: Suitable for air, water, steam, and other fluids.
Safe & Reliable: Operating pressure range -100kPa to 1MPa, with a proof pressure of 3.0MPa.
Technical Parameters:
| Proof pressure | 3.0 MPa |
| Metal parts | Stainless Steel 316 |
| Seal parts | Special FKM |
| Fluid | Air, Water, Steam |
| Applicable tubing material | FEP, PFA, Nylon, Soft Nylon |
| Fluid temperature | -5 to 150˚C |
| KQG2H04-00 | KQG2H04-06 | KQG2H04-01S | KQG2H08-01S | KQG2H12-03S | KQG2H04-01 | KQG2H08-02 | KQG2H12-02 |
| KQG2H06-00 | KQG2H06-08 | KQG2H04-02S | KQG2H08-02S | KQG2H12-04S | KQG2H04-02 | KQG2H08-03 | KQG2H12-03 |
| KQG2H08-00 | KQG2H08-10 | KQG2H06-M5 | KQG2H08-03S | KQG2H16-03S | KQG2H06-01 | KQG2H10-01 | KQG2H12-04 |
| KQG2H10-00 | KQG2H10-12 | KQG2H06-01S | KQG2H10-01S | KQG2H16-04S | KQG2H06-02 | KQG2H10-02 | KQG2H16-03 |
| KQG2H12-00 | KQG2H12-16 | KQG2H06-02S | KQG2H10-02S | KQG2H10-04S | KQG2H06-03 | KQG2H10-03 | KQG2H16-04 |
| KQG2H16-00 | KQG2H04-M5 | KQG2H06-03S | KQG2H10-03S | KQG2H12-02S | KQG2H08-01 | KQG2H10-04 |
|
Applications:
Food & Pharmaceutical Industry: Complies with Japanese Food Hygiene Law requirements, suitable for food and pharmaceutical equipment.
Semiconductor & Electronics Industry: Ideal for gas and liquid transfer in high-purity environments.
Chemical Processing: Corrosion-resistant characteristics suitable for chemical transfer systems.
High-Temperature Steam Environments: Applicable for equipment requiring steam cleaning or sterilization.
